TRANSPORT OPTIONS

Resilient Custom Connectivity to Our Global Network

Whatever your network topology, our connectivity solutions are flexible to your changing quality, security and cost requirements across locations. Take the quickest route to global telecoms enablement.
Header Image

Choosing the Best Voice Transport Options For Your Business

When you’re ready to interconnect with the global Voxbone Network, we have a range of distinct transport solutions to fit your needs.

Ensure cost-effective resiliency by pairing redundant connectivity solutions into a single location. Or mix and match to build out different combinations for each of your sites depending on your specific connectivity needs in these premises.

What those needs look like will depend largely on the composition of your telecoms network layer. Are you spread across data centers in multiple regions of the globe, or operating from a single office location? Are you running in a cloud environment like AWS, Google Cloud or Microsoft Azure?Operating cloud-first virtual environments, or do you have physical fiber running into your locations?

Choosing how to transport voice traffic between your network and Voxbone goes a long way to determining the quality and security of the service. Under the Voxbone Connect umbrella, our connectivity solutions have been engineered around four core principles to ensure you can consume our services precisely as and when you need.

Quality

The best voice quality, fine-tuned for any network configuration. Quality dictates CX, a major differentiator for most businesses.

Connecting to the Voxbone backbone via specific links is key to ensuring superior quality anytime, anywhere.

Security

End-to-end voice traffic security, for full control over network routes into your business.

Running SIP unencrypted leaves telecoms equipment open to security vulnerabilities providing critical attack vectors into your wider network.

Flexibility

Our modular connectivity is architected so businesses have the granularity necessary to build optimal paths into the Voxbone network on a per-location and per-use case basis.

Check out some typical use cases at the bottom of this page.

Velocity

If you've ever waited months for connectivity, you'll appreciate the importance of rapid implementation.

We provide significantly quicker routes to enablement, delivering connectivity in a fraction of the time it takes for legacy providers.

Express Route Interconnectivity With All Major Cloud Environments

A Modular Approach to Global Voice Transport

To make sure your Voxbone journey is supported by the most appropriate connectivity options for your requirements in each and every one of your locations, Voxbone Connect is available in any combination of the following modules.

Think of these as the bricks out of which you can build your ideal connectivity solution.

Option 1: Connect via Route-Based VPN

  • Voxbone’s entire network estate can be reached via one VPN including the 81.201.89.110 outbound destination.
  • Because VPNs rely on internet delivery, you should consider establishing a secondary route to ensure resilient connectivity and guaranteed service availability.
  • Voxbone will advertise the public IP range via either Static Routes, or BGP AS Number 41135. For dynamic rerouting, BGP is required.
  • Static Route changes must be requested and will usually require be delivered with 2 business days’ notice.
  • Bidirectional Forwarding Detection (BFD) can be enabled to support sub-second failure detection.
  • VPNs are terminated to the nominated SuperPop of your choice.
  • Customers performing IP Whitelisting should route using RFC1918 IP addresses to ensure whitelisting is only allowed against private IP addresses.

Option 2: Connect Via Policy-Based VPN

  • Voxbone’s entire network estate can be reached via one VPN including the 81.201.89.110 outbound destination.
  • Because VPNs rely on internet delivery, you should consider establishing a secondary route to ensure resilient connectivity and guaranteed service availability.
  • Voxbone will configure policy routing based on the IP ranges provided. Dynamic rerouting is not possible using this method.
  • Policy changes must be requested and will usually require be delivered with 2 business days’ notice.
  • VPNs are terminated to the nominated SuperPoP of your choice.
  • Customers performing IP Whitelisting should route using RFC1918 IP addresses to ensure whitelisting is only allowed against private IP addresses

Option 3. Connect Via SD-Wan with Megaport

  • Voxbone’s entire network estate can be reached via one VPN including the 81.201.89.110 outbound destination.
  • Voxbone has dual Megaport connections into each of its SuperPoPs
  • Megaport connections are enabled for BGP routing and dynamic rerouting
  • Megaport connections are terminated to the nominated SuperPoP of your choice.
  • Customers performing IP Whitelisting should route using RFC1918 IP addresses to ensure whitelisting is only allowed against private IP addresses.
  • Megaport – NAT IP consideration
    Megaport connections are VLAN’d per customer to ensure appropriate security / isolation of each customers’ traffic

Option 4. Connect via Direct Cross-Connect

  • Voxbone’s entire network estate can be reached via one direct connection including the 81.201.89.110 outbound destination.
  • For resilience, more than one connection is required
  • Direct connections can support static routes or BGP
  • Changes to the link must be requested and will usually require be delivered with 2 business days’ notice.
  • VPNs are terminated to the nominated SuperPoP of your choice, or if required to any of our Collect PoPs. Connecting via a CollectPoP will incur additional fees to cover the cost of the required backbone transit bandwidth.
  • Customers performing IP Whitelisting should route using RFC1918 IP addresses to ensure whitelisting is only allowed against private IP addresses.
  • Available Collect PoPs: Amsterdam Interxion AM1-4, New York – Equinix NY2, Paris – Telehouse 2, Paris – InterXion 2, Rotterdam – BytesNet, Singapore – Equinix SG1
Oded Gal

Setting up and delivering voice services is a fast, easy and reliable process. We don’t need to worry about the high costs or complications of traditional telephony with Voxbone in our corner.

Oded Gal,
Chief Product Officer

Mix & Match Connectivity Options As You See Fit

See below for some of the different connectivity scenarios among our existing customers, as well as common use cases our flexible solutions address. Just click on any of the headings that interest you for diagrams and details.

Large Scale Global Provider Standard - Direct Connect + MegaPort

  • A premium solution for companies requiring the gold standard of connectivity.
  • Provides full voice quality and failover connectivity within each region
  • Designed to deliver capability for 10,000 concurrent calls per region
  • Using Megaport and a 3rd-party connectivity provider grants provider resilience
  • Low latency connectivity within each region
  • Fully secured private links
  • Due to the premium cost, this solution requires significant volume to provide value. Longer lead times for setup than other solutions.

Flexible Global Provider - Megaport + VPN

  • Fully scalable solution designed to deliver agility in setup times
  • Solution provides excellent ability to scale up and down with flex in call volumes
  • Guaranteed call quality on primary link, with failover to VPN to provide resiliency
  • Cost-effective and low-latency primary connection in each region
  • Fully secured private link
  • Call quality cannot be guaranteed on backup link as it’s delivered over the internet

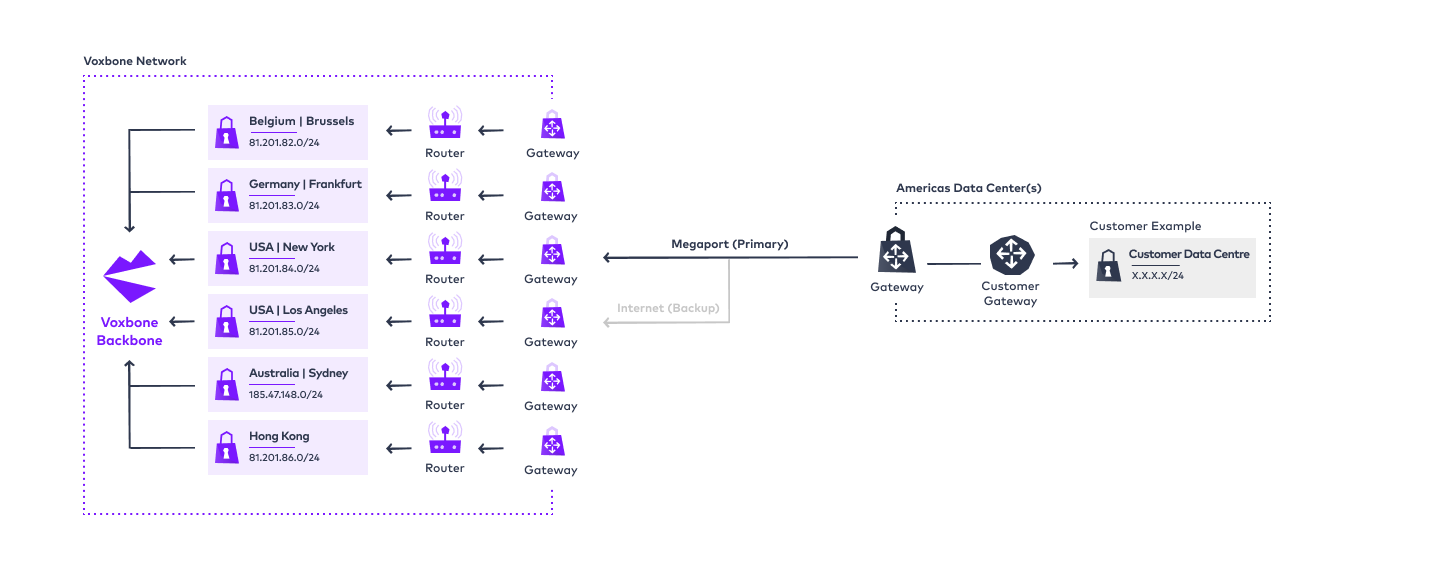

Centralised Service - Megaport + Internet

  • Designed for Hub and Spoke delivery into your datacenters, wherever they are located
  • Leverages Voxbone’s global network capabilities to support your own global requirements
  • Guaranteed voice quality on primary line with failover-to-internet to provide cost-effective resilience
  • Call quality cannot be guaranteed on backup link as it’s delivered over the internet
  • Consider adding TLS/SRTP encryption to the internet configuration to bring it in line with primary link in terms of security

Mitigating Poor Voice Quality - Adding Megaport to existing Internet connection

  • Our network monitoring capabilities let us see the impact that an internet link has on call quality
  • We can recommend to customers suffering poor voice quality when to consider additional connectivity options
  • Megaport connections provide cost-effective connectivity as they can be purchased in 100Mb bundles (enough bandwidth for 1000 concurrent calls)
  • Given the extensive Points of Presence on the Megaport network, these connections can be used to quickly enhance connectivity and overcome quality issues

Ready to test our connectivity?
